工作流 BPMN | iGmaBlog

安装 bpmn-js

npm

npm i bpmn-js

事件监听

在 BpmnModeler 实例对象身上有个 on 方法，可以监听事件。所有事件可以通过 new BpmnModeler().get('eventBus')._listeners 查看。

selection.changed：选中/取消选中元素时触发。

工作流引擎

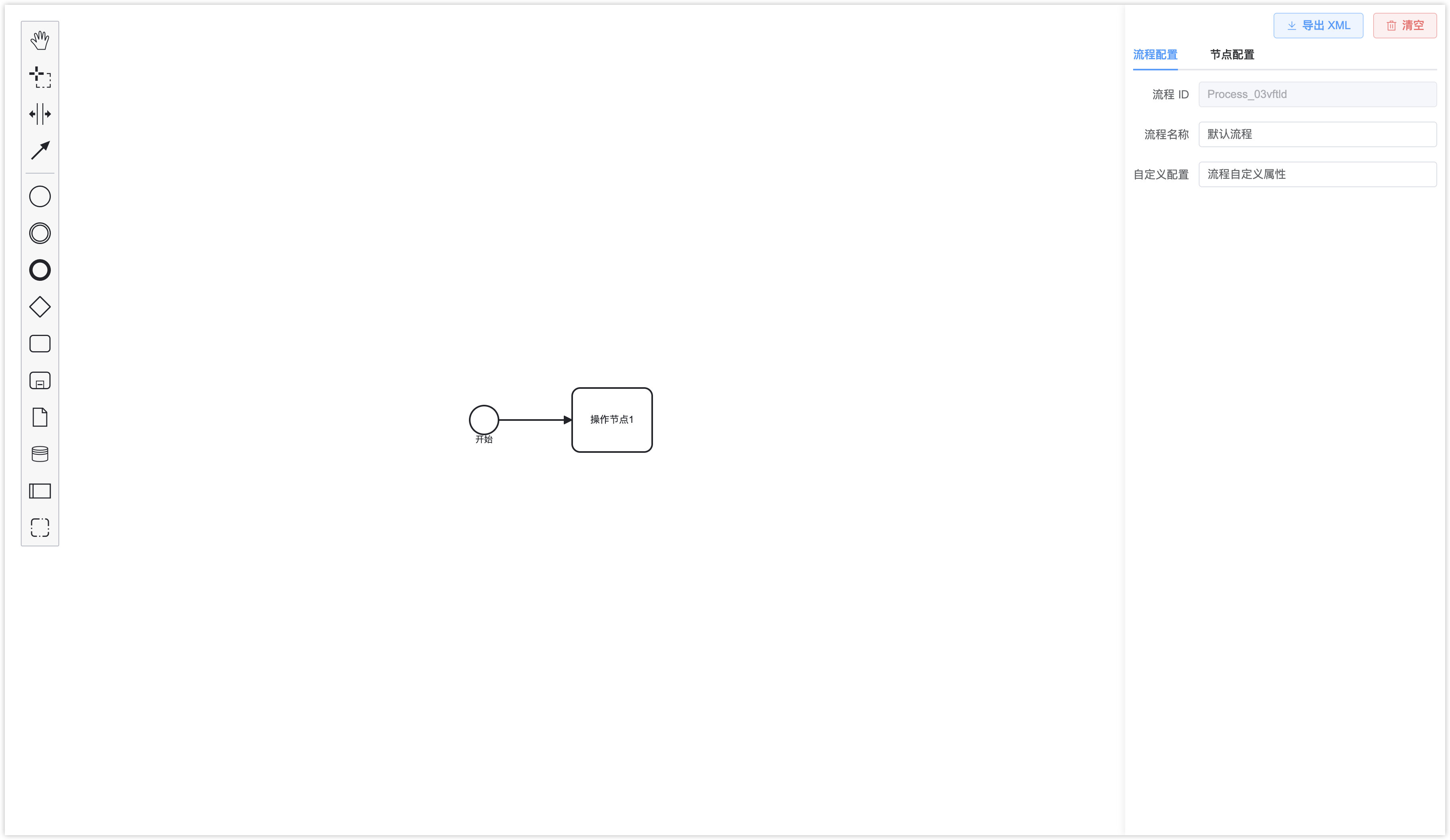

封装组件

Vue 文件

App.vue

BPMN.vue

vue

<script setup>
import BPMN from "./components/BPMN.vue";
</script>

<template>
    <div class="app">
        <BPMN />
    </div>
</template>

<style scoped>
.app {
    width: 100vw;
    height: 100vh;
}
</style>

vue

<script setup>
    import {onMounted, ref, useTemplateRef, watch} from "vue";
    import BpmnModeler from 'bpmn-js/lib/Modeler';
    import 'bpmn-js/dist/assets/bpmn-js.css';
    import 'bpmn-js/dist/assets/diagram-js.css';
    import 'bpmn-js/dist/assets/bpmn-font/css/bpmn.css';
    import bpmnXML from '../assets/default.bpmn?raw';

    let modeler = null;
    let currentNode = null;
    let loading = ref(false);
    let tabIndex = ref('flow');     // Tab 索引
    let flowForm = ref(null);       // 流程配置
    let nodeForm = ref(null);       // 节点配置
    const container = useTemplateRef('container');

    // 导出 XML
    async function importXML() {
        loading.value = true;
        let res = await modeler.saveXML({format: true});
        console.log('res', res.xml);
        loading.value = false;
    }

    // 清空
    async function clear() {
        loading.value = true;
        await modeler.importXML(bpmnXML);
        let processBusinessObject = modeler.get('canvas').getRootElement().businessObject;
        flowForm.value = {
            id: processBusinessObject.get('id'),
            name: processBusinessObject.get('name'),
            zdy: processBusinessObject.get('zdy'),
        }
        loading.value = false;
    }

    // 监听流程表单
    watch(flowForm, newVal => {
        if (newVal) {
            modeler.get('modeling').updateProperties(modeler.get('canvas').getRootElement(), {
                name: newVal.name,
                zdy: newVal.zdy
            })
        }
    }, {deep: true})

    // 监听节点表单
    watch(nodeForm, (newVal, oldVal) => {
        if (newVal && oldVal) {
            modeler.get('modeling').updateProperties(currentNode, {
                name: newVal.name,
                zdy: newVal.zdy
            });
        }
    }, {deep: true})

    onMounted(async () => {
        loading.value = true;
        modeler = new BpmnModeler({
            container: container.value,
            additionalModules: [{
                translate: ['value', (template, replacements) => {
                    replacements = replacements || {};

                    // 中文字典
                    const translations = {
                        'Search in diagram': '在图表中搜索',
                        'Activate hand tool': '小手工具',
                        'Activate lasso tool': '套索工具',
                        'Activate create/remove space tool': '激活创建/移除空间工具',
                        'Activate global connect tool': '箭头',
                        'Create start event': '开始节点',
                        'Create intermediate/boundary event': '中间件',
                        'Create end event': '结束节点',
                        'Create gateway': '创建网关',
                        'Create task': '创建任务',
                        'Create data object reference': '创建数据对象引用',
                        'Create data store reference': '创建数据存储引用',
                        'Create expanded sub-process': '创建子流程',
                        'Create pool/participant': '创建池/参与者',
                        'Create group': '创建群组',
                    };

                    template = translations[template] || template;

                    return template.replace(/{([^}]+)}/g, function(_, key) {
                        return replacements[key] || '{' + key + '}';
                    });
                }]
            }]
        });
        await modeler.importXML(bpmnXML);

        // 在 processBusinessObject 中可获取流程属性
        let processBusinessObject = modeler.get('canvas').getRootElement().businessObject;
        flowForm.value = {
            id: processBusinessObject.get('id'),
            name: processBusinessObject.get('name'),
            zdy: processBusinessObject.get('zdy'),
        }

        // 选择任务节点时触发
        modeler.on('selection.changed', e => {
            if (e.newSelection.length === 1 && e.newSelection[0].type === 'bpmn:Task') {
                currentNode = e.newSelection[0];

                // 通过 currentNode.businessObject 读取 bpmn 节点属性，自定义属性在 currentNode.businessObject.$attrs 里。
                nodeForm.value = {
                    id: currentNode.businessObject.id,
                    name: currentNode.businessObject.name,
                    zdy: currentNode.businessObject.$attrs.zdy,
                }
                tabIndex.value = 'node';
            } else {
                currentNode = null;
                nodeForm.value = null;
                tabIndex.value = 'flow';
            }
        })

        // 画布默认居中
        modeler.get('canvas').zoom('fit-viewport', 'center');

        // 隐藏右下角 BPMN.IO 的 Logo
        document.querySelector('.bjs-powered-by').style.display = 'none';
        loading.value = false;
    })
</script>

<template>
    <div class="bpmn" v-loading="loading">
        <div ref="container" />
        <div class="form">
            <div class="btns">
                <el-button type="primary" icon="Download" plain @click="importXML">导出 XML</el-button>
                <el-button type="danger" icon="Delete" plain @click="clear">清空</el-button>
            </div>

            <el-tabs v-model="tabIndex">
                <el-tab-pane label="流程配置" name="flow">
                    <el-form ref="flowFormRef" :model="flowForm" label-width="auto" v-if="flowForm">
                        <el-form-item label="流程 ID">
                            <el-input v-model="flowForm.id" disabled />
                        </el-form-item>
                        <el-form-item label="流程名称">
                            <el-input v-model="flowForm.name" />
                        </el-form-item>
                        <el-form-item label="自定义配置">
                            <el-input v-model="flowForm.zdy" />
                        </el-form-item>
                    </el-form>
                </el-tab-pane>
                <el-tab-pane label="节点配置" name="node">
                    <el-form ref="nodeFormRef" :model="nodeForm" label-width="auto" v-if="nodeForm">
                        <el-form-item label="节点 ID">
                            <el-input v-model="nodeForm.id" disabled />
                        </el-form-item>
                        <el-form-item label="节点名称">
                            <el-input v-model="nodeForm.name" />
                        </el-form-item>
                        <el-form-item label="自定义配置">
                            <el-input v-model="nodeForm.zdy" />
                        </el-form-item>
                    </el-form>
                </el-tab-pane>
            </el-tabs>
        </div>
    </div>
</template>

<style scoped>
    .bpmn {
        height: 100%;
        display: grid;
        grid-template-columns: 1fr 400px;
        gap: 10px;

        > div {
            height: 100%;
        }

        .form {
            box-shadow: 0 0 10px rgba(0, 0, 0, 0.1);
            padding: 10px;
            box-sizing: border-box;

            .btns {
                display: flex;
                justify-content: flex-end;
            }
        }
    }
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194

其他文件

main.js

style.css

default.bpmn

package.json

import {createApp} from 'vue';
import ElementPlus from 'element-plus';
import * as ElementPlusIconsVue from '@element-plus/icons-vue'
import 'element-plus/dist/index.css';
import './style.css';
import App from './App.vue';

const app = createApp(App);
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
    app.component(key, component)
}

app.use(ElementPlus);
app.mount('#app');

css

* {
    margin: 0;
    padding: 0;
}

xml

<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL"
    xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
    xmlns:dc="http://www.omg.org/spec/DD/20100524/DC"
    xmlns:di="http://www.omg.org/spec/DD/20100524/DI"
    id="Definitions_0prl7x2"
    targetNamespace="http://bpmn.io/schema/bpmn"
    exporter="bpmn-js (https://demo.bpmn.io)"
    exporterVersion="18.9.0"
>
    <bpmn:process id="Process_03vftld" name="默认流程" zdy="流程自定义属性" isExecutable="false">
        <bpmn:startEvent id="StartEvent_19wzb6o" name="开始">
            <bpmn:outgoing>Flow_1kaoirg</bpmn:outgoing>
        </bpmn:startEvent>
        <bpmn:task id="Activity_1j6wqk8" name="操作节点1" zdy="节点自定义属性">
            <bpmn:incoming>Flow_1kaoirg</bpmn:incoming>
        </bpmn:task>
        <bpmn:sequenceFlow id="Flow_1kaoirg" sourceRef="StartEvent_19wzb6o" targetRef="Activity_1j6wqk8"/>
    </bpmn:process>
    <bpmndi:BPMNDiagram id="BPMNDiagram_1">
        <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_03vftld">
            <bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_19wzb6o">
                <dc:Bounds x="152" y="102" width="36" height="36"/>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape id="Activity_1j6wqk8_di" bpmnElement="Activity_1j6wqk8">
                <dc:Bounds x="280" y="80" width="100" height="80"/>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNEdge id="Flow_1kaoirg_di" bpmnElement="Flow_1kaoirg">
                <di:waypoint x="188" y="120"/>
                <di:waypoint x="280" y="120"/>
            </bpmndi:BPMNEdge>
        </bpmndi:BPMNPlane>
    </bpmndi:BPMNDiagram>
</bpmn:definitions>

json

{
    "name": "vue3",
    "private": true,
    "version": "0.0.0",
    "type": "module",
    "scripts": {
        "dev": "vite",
        "build": "vite build",
        "preview": "vite preview"
    },
    "dependencies": {
        "@element-plus/icons-vue": "^2.3.2",
        "bpmn-js": "^18.9.1",
        "element-plus": "^2.11.9",
        "vue": "^3.5.13"
    },
    "devDependencies": {
        "@vitejs/plugin-vue": "^5.2.1",
        "vite": "^6.2.0"
    }
}
